5K BS Pollution Controlled Double Pack Stuffing Box

Overview

The stuffing box serves as the seal for the produced service produced in all beam pump lifting systems. The SB seal ensures produced service is routed through the pumping tee and transferred down the flowline to the tank batteries. Without the stuffing box, most produced fluid would never reach the tank batteries.

How to Use This Training Module

This module is designed to be completed in sequence. Start with Lesson 1 and work your way down, reviewing each lesson before moving on.

Work through each lesson panel in order, expanding the content and reviewing all notes, diagrams, and callouts.
Use any downloadable resources or diagrams provided to reinforce key concepts.
When you’ve completed the lessons, scroll down to the Knowledge Check section.
Answer all questions based on what you’ve just reviewed.
Submit your answers to see your results. If you miss questions, review the related lesson(s) and try again.

Once you successfully complete the Knowledge Check, this module will be marked as completed and you’ll earn WSI Certification for this training module, confirming your understanding of the equipment and procedures covered.

Training Content

Lesson 1 Stuffing Box Descriptive Breakdown

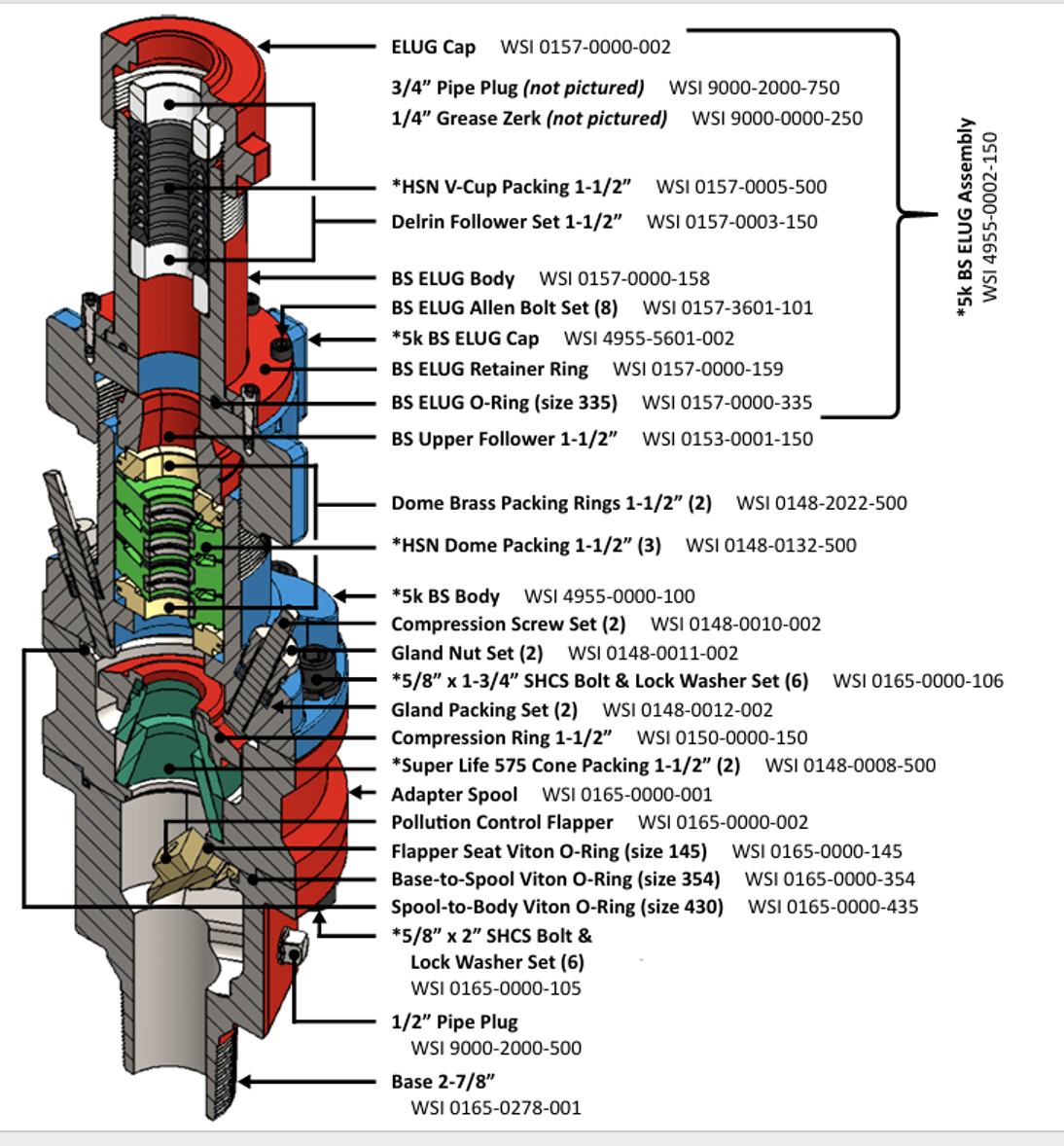

5K BS Stuffing Box with labeled callouts

Lesson 1 – Stuffing Box Descriptive Breakdown

Use this diagram together with the callout list. In the knowledge check, you'll match each labeled component to its correct description.

Upper Assembly

ELUG Cap – WSI 0157-0000-002
3/4" Pipe Plug (not pictured) – WSI 9000-2000-750
1/4" Grease Zerk (not pictured) – WSI 9000-0000-250

ELUG Packing Stack

HSN V-Cup Packing 1-1/2" – WSI 0157-0005-500
Delrin Follower Set 1-1/2" – WSI 0157-0003-150

ELUG Assembly Components

BS ELUG Body – WSI 0157-0000-158
BS ELUG Allen Bolt Set (8) – WSI 0157-3601-101
*5k BS ELUG Cap – WSI 4955-5601-002
BS ELUG Retainer Ring – WSI 0157-0000-159
BS ELUG O-Ring (size 335) – WSI 0157-0000-335
BS Upper Follower 1-1/2" – WSI 0153-0001-150
*5k BS ELUG Assembly – WSI 4955-0002-150

Dome Packing Components

Dome Brass Packing Rings 1-1/2" (2) – WSI 0148-2022-500
*HSN Dome Packing 1-1/2" (3) – WSI 0148-0132-500

Body & Fasteners

*5k BS Body – WSI 4955-0000-100
Compression Screw Set (2) – WSI 0148-0010-002
Gland Nut Set (2) – WSI 0148-0011-002
*5/8" x 1-3/4" SHCS Bolt & Lock Washer Set (6) – WSI 0165-0000-106

Packing & Compression

Gland Packing Set (2) – WSI 0148-0102-002
Compression Ring 1-1/2" – WSI 0150-0000-150
*Super Life 575 Cone Packing 1-1/2" (2) – WSI 0148-0008-500

Spool & Flapper Assembly

Adapter Spool – WSI 0165-0000-001
Pollution Control Flapper – WSI 0165-0000-002
Flapper Seat Viton O-Ring (size 145) – WSI 0165-0000-145

O-Rings & Lower Connection

Base-to-Spool Viton O-Ring (size 354) – WSI 0165-0000-354
Spool-to-Body Viton O-Ring (size 430) – WSI 0165-0000-435
*5/8" x 2" SHCS Bolt & Lock Washer Set (6) – WSI 0165-0000-105
1/2" Pipe Plug – WSI 9000-2000-500
Base 2-7/8" – WSI 0165-0278-001

This lesson provides a 3D interactive stuffing box model. Use your mouse to rotate, zoom, and inspect each component.

After exploring the model, proceed to the next lesson and then complete the knowledge check.

Watch the following training video in full before attempting the module knowledge check.

Knowledge Check

Knowledge Check – Lesson 1

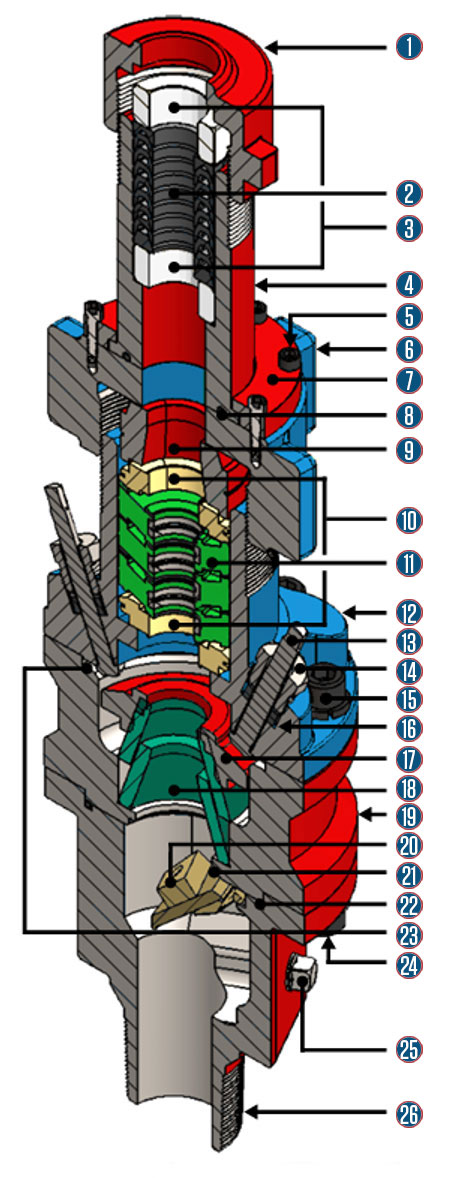

For each numbered arrow on the diagram, choose the correct component from the dropdown list.

The knowledge check for Lesson 2 will be added here in a future update.

The knowledge check for Lesson 3 will be added here in a future update.
